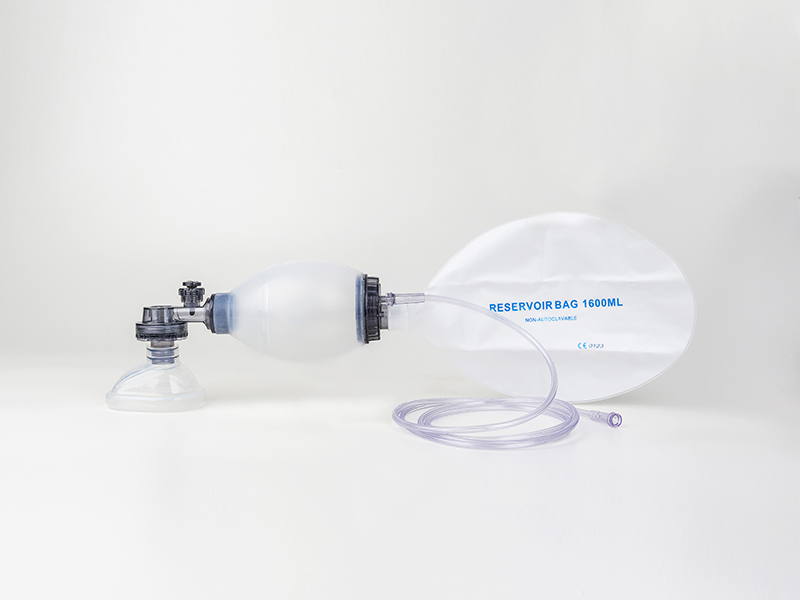

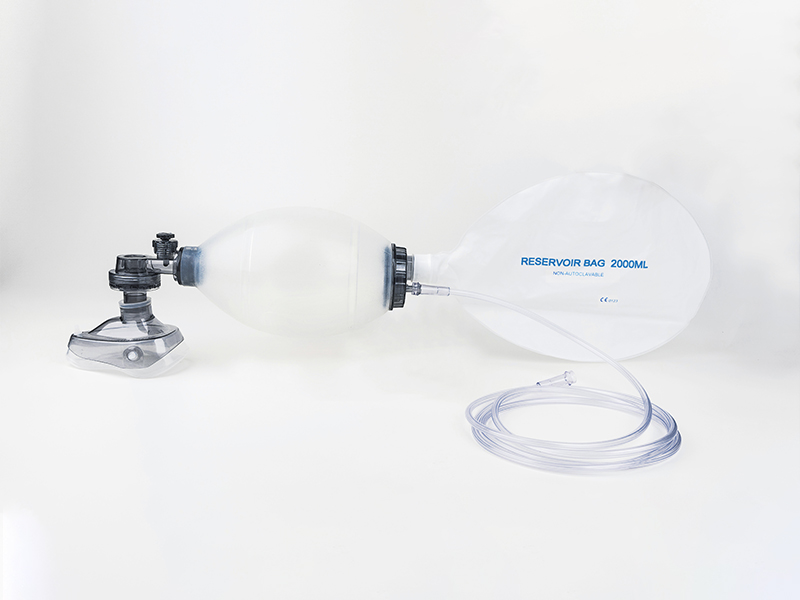

Reusable Silicone BVM Mask Resuscitation Bag

This ergonomic, light weight design of reusable silicone ambu bag is an ideal ventilation option with three sizes (infant, pediatric, adult) available for emergency rescue and hospital use. The whole resuscitator can be easily cleaned and autoclaved at a temperature of 134° Celsius. The resuscitators are semi-transparent allowing for a visual check of the patient’s condition.

  • Brand:

    OEM
  • Item No.:

    AM-RMR-M31-4/1/0
  • Color:

    White
  • Size:

    Adult/Pediatric/Infant
  • Material:

    Solid Silicone Rubber
  • Application:

    Emergency Resuscitation
  • MOQ:

    300
  • Lead Time:

    60 days
  • Shipping Terms:

    FOB
  • Packaging Details:

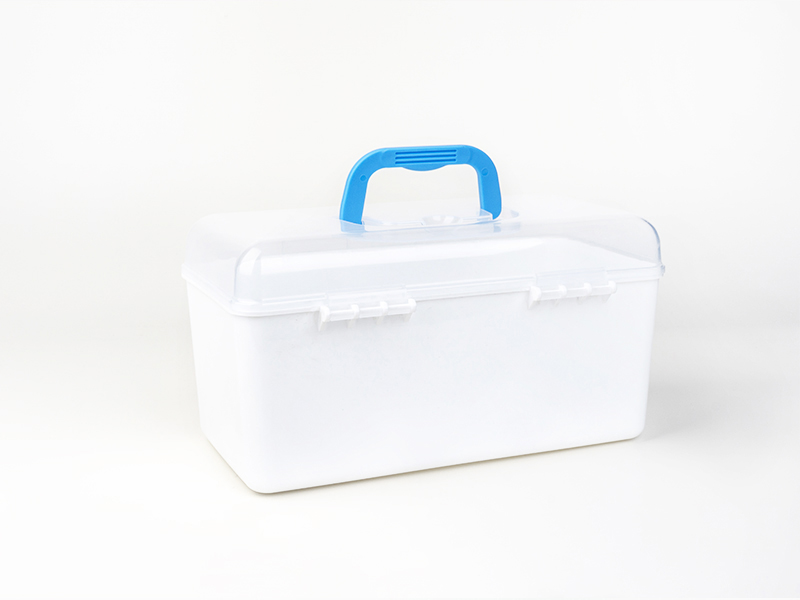

    Each set is packed into a white PP box
  • Carton Size:

    57 x 34 x 46 CM / 12 SETS
  • Shipping Weight:

    10.7 Kilos
Description
  • The silicone optimizes the resuscitator to be soft and lightweight to grasp without causing fatigue to the rescuers during extended ventilation.
  • The BVM provides users with exceptional tactile and visual feedback during resuscitation with minimum mechanical resistance.
  • The resuscitator(except oxygen tubing and reservoir bag)can be autoclaved and sterilized up to 20 times at 134°C to prevent cross contamination and to save spaces and costs.
  • The transparent bag enables the user to see lip color, secretion, vomit and fogging caused by exhalations during ventilation.
  • The 360 degrees swivel connector allows more flexibility and enables the provider to ventilate in various positions.
  • The integrated intake and reservoir valve can be connected to an external oxygen supply when needed. The oxygen can then be stored in the oxygen reservoir bag connected to the valve.
  • The non-rebreathing valve and PEEP-valve can help control the air pressure within an appropriate value and keep lungs from over inflating
  • The one-way patient valve allows air to flow to the patient, without air from the patient reentering the ventilation bag.
  • It can be high-temperature autoclaved so no concerns on cross-contamination or infectious disease would occur.
  • The whole set consists of a face mask, an oxygen tubing, PEEP-valve, inlet valve and a reservoir bag.
  • All materials are not made with natural rubber latex.
Specification

Type

Infant

Pediatric

Adult

Body weight

≤10kg

10kg-40kg

40kg

Stroke volume

150ml

400ml

800ml

Resuscitator volume

280ml

600ml

1650ml

Dimensions L x D

135 x 75mm

146 x 100mm

212 x 131mm

Resuscitator weight

350g

410g

600g

Pressure limiting valve

40cmH2O

40cmH2O

60cmH2O

Inspiratory resistance

5cmH2O (at 50L/min)

Expiratory resistance

5cmH2O (at 50L/min)

Bag volume

1600ml

1600ml

2000ml

Patient connector

ISO5356-1:φ22/15mm Male / Female

Recommended operating temperature

-18℃+50℃

Storage

Tested at -40℃ and 60℃



Product FAQs


Q: What is an “Ambu bag”?

A: An Ambu bag is a medical tool used to force air into the lungs of patients who:

1.are not breathing; or

2.are not breathing adequately so still need assistance


Q: How does a Ambu bag work?

A: With the mask pressed over the patient’s airway, air is forced into the lungs by squeezing the bag. The bag then refills itself with air when released, allowing it to return to its original shape. The bag can be squeezed out and re-inflated rapidly and repeatedly to resuscitate the patient and provide oxygen, even if the patient can’t breathe on their own.


Q: What does Ambu stand for?

A: The term “Ambu bag” comes from the acronym for “artificial manual breathing unit” and is used to refer to bag valve masks. The company that invented the Ambu bag was originally called Testa Laboratory and rebranded as Ambu in the 1980s.


Q: Can Ambu bag be used without oxygen?

A: Yes, the Ambu bag can be used without extra oxygen.


Q: What are Ambu bags used for?

A: A bag valve mask, abbreviated to BVM and sometimes known by the proprietary name Ambu bag or generically as a manual resuscitator or "self-inflating bag", is a hand-held device commonly used to provide positive pressure ventilation to patients who are not breathing or not breathing adequately.


Q: How do you Sterilize Ambu bags?

A: If an Ambu bag is of the reusable type, it must be disassembled and thoroughly cleaned, first of any “gross soiling” through meticulous hand-rinsing, washing, and re-rinsing. Some Ambu bags can be sterilized in an autoclave at 134° C or 272° F. Otherwise, it must be sterilized through the use of the recommended disinfectant solution. Glutaraldehyde 2% is an appropriately high-level disinfectant; the bag must be immersed in the solution for at least 20 minutes.Because of the complicated structure of the Ambu bag, it is recommended that disposable models be used in cases where proper cleaning and sterilization protocols and equipment are not in place.


Q: How much oxygen does a BVM deliver?

A: The flow rate when using this device is 10 to 15 LPM (liters per minute). A non-rebreather mask can deliver an oxygen concentration of 90 percent or more. A BVM can deliver up to 100 percent oxygen to a breathing or non-breathing victim when attached to emergency oxygen.


Q: Do Ambu bags expire?

A: The bag valve mask resuscitator (Ambu Bag) doesn’t have a specific shelf life but we recommend that you should consider updating your BVM after 5+ years from its manufactured date. Life of any Ambu bag depends on its design, what materials it is made from, how it has been cleaned, and in what situations it has been used. Any Ambu bag being reused must be disassembled, thoroughly cleaned and sterilized, then reassembled and tested after each use.


Q:Who can use an Ambu bag?

A:An Ambu bag should be used only by trained medical personnel, including doctors, nurses, EMTs and paramedics. Serious complications from misuse of a BVM can occur; it must be used properly for sufficient respiration to be provided and to avoid injuries or complications from misdirection of air, etc.


Q:How do you use an Ambu bag with CPR?

A: Use an Ambu bag to provide two ventilations for every 30 chest compressions. The Ambu bag can be put in place as the first compressions begin.



Q:How do you use an Ambu bag with oxygen?

A:Most Ambu bags have a connection port for an oxygen tube which delivers pure oxygen from a cylinder, where the amount of oxygen being supplied can be controlled.
