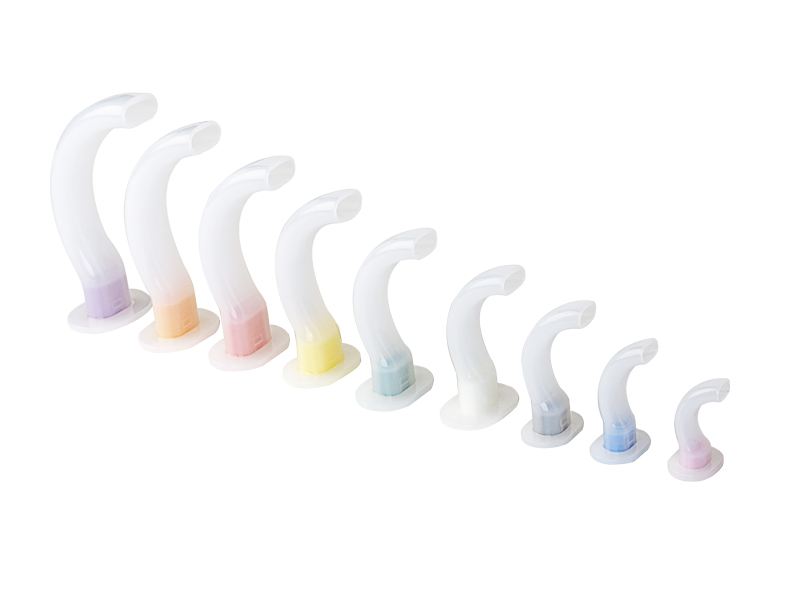

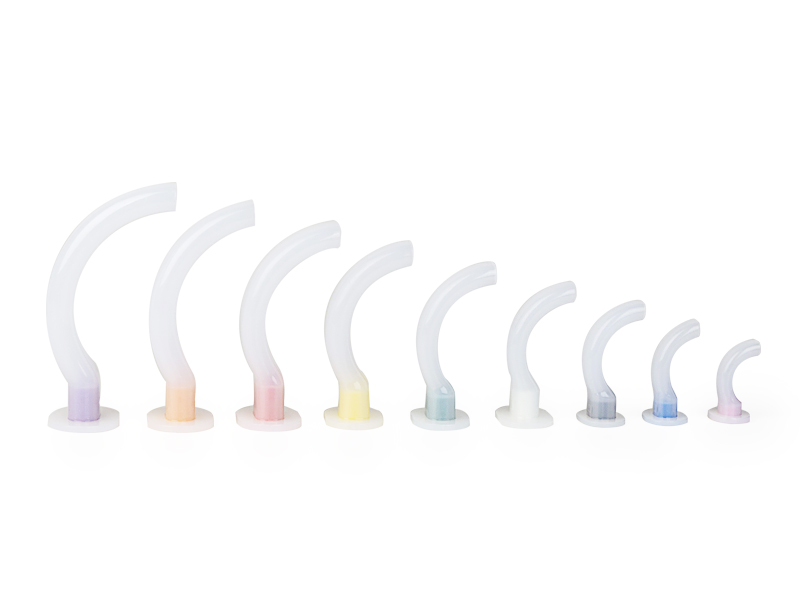

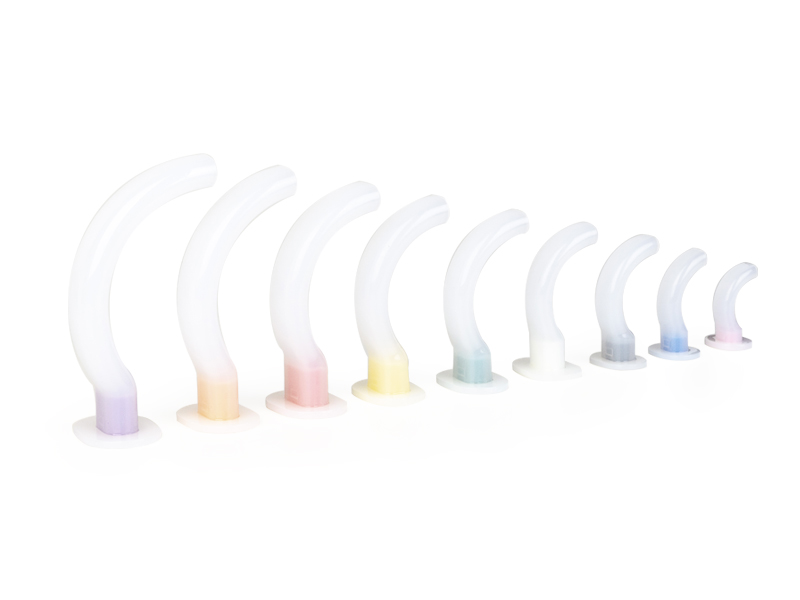

Guedel Oropharyngeal Airway Kit

Our Guedel oropharyngeal airway kit is made with an open channel down the center to enable suctioning. It helps prevent the tongue of a patient from dropping back and therefore block the airway.

  • Brand:

    OEM
  • Color:

    Eight Colors
  • Size:

    Neonate to Adult
  • Material:

    HDPE
  • Application:

    Emergency Resuscitation
  • MOQ:

    2000
  • Lead Time:

    60
  • Shipping Terms:

    FOB
  • Packaging Details:

    Individually packed in a poly bag
  • Carton Size:

    46 x 36 x 30 CM
Description
  • The tubes are color-coded for sizes which indicate different tube lengths range from 40mm to 120mm.
  • A full set of tubes in various sizes are well-arranged and packed in the PP box for easy and distinct utilization.
  • The tubes are made of high-density PE (HDPE) in milky-white with low-friction surface to prevent damage to the patients.
  • The tube-guiding channel with same lumen from proximal to distal end allows largest possible suction catheters.
  • The tube functions as bite block to prevent an occlusion of the ET Tube caused by the patient’s teeth.
  • The smooth rounded tip of the airway reduces trauma to the patients.
  • Our Guedel airways are anatomical-shaped to ensure the safety of patients
  • All the airways are for single-use only so you have no concern about infectious disease
  • All materials are not made with natural rubber latex.
Specification

Item No.

Size

Length

Color

Type

Quantity/carton

Shipping Weight

AM-DGA-M04-TGA-000

000

40mm

Pink

Neonate

500

3.2kg

AM-DGA-M04-TGA-00

00

50mm

Blue

Infant

500

3.6kg

AM-DGA-M04-TGA-0

0

60mm

Black

Pediatric-S

300

3.0kg

AM-DGA-M04-TGA-1

1

70mm

White

Pediatric

300

3.8kg

AM-DGA-M04-TGA-2

2

80mm

Green

Adult-S

250

3.9kg

AM-DGA-M04-TGA-3

3

90mm

Yellow

Adult-M

250

4.5kg

AM-DGA-M04-TGA-4

4

100mm

Red

Adult-L

250

5.2kg

AM-DGA-M04-TGA-5

5

110mm

Orange

Adult-XL

200

5.0kg

AM-DGA-M04-TGA-6

6

120mm

Purple

Adult-XXL

200

6.1kg


Product FAQs

Q: What is a Guedel Oropharyngeal Airway?

A: A Guedel is a rigid plastic tube which sits along top of mouth and ends at base of tongue (an adjunct to help keep airway open).



Q: When would you use an oropharyngeal airway?

A: In a deeply unresponsive/unconscious patient, an oropharyngeal airway is safe to use because the gag reflex will be depressed.



Q: When an oropharyngeal airway is inserted properly What is the sign?

A: The correct size OPA is chosen by measuring from the first incisors to the angle of the jaw. The airway is then inserted into the person's mouth upside down. Once contact is made with the back of the throat, the airway is rotated 180 degrees, allowing for easy insertion, and assuring that the tongue is secured.



Q: What is the most common complication after inserting an oral airway?

A: Airway hyperactivity is a potentially lethal complication of OPA use, because oropharyngeal and laryngeal reflexes can be stimulated by the placement of an artificial airway. Coughing, retching, emesis, laryngospasm, and bronchospasm are common reflex responses.



Q: How do you size a Guedel Airway?

A: The OPA is sized by measuring from the center of the mouth to the angle of the jaw, or from the corner of the mouth to the earlobe. The mouth is opened using the “crossed or scissors” finger technique.


Downloads

supplementary information

Request a Quote

Leave us a message and we’ll put you in touch with the right people to provide you more information as quickly as possible.
